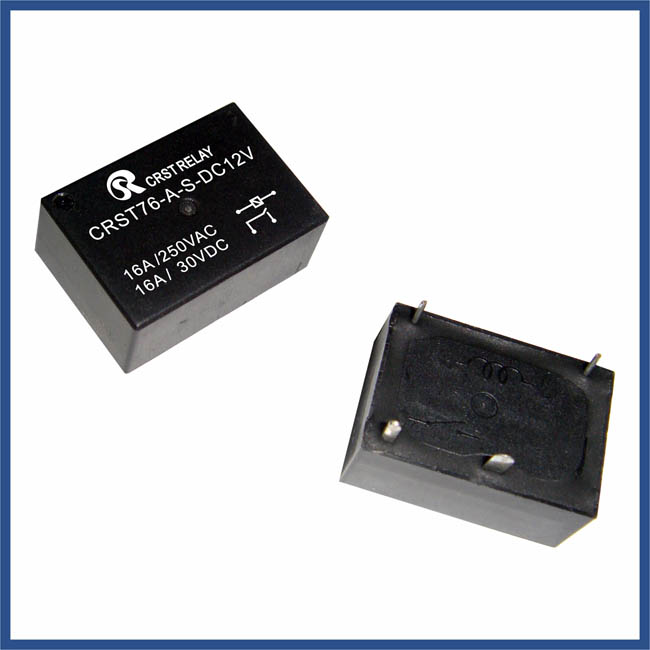

Type:CRST76 relays |
Dimensions:23X16.2X10.2mm |
Contact Form:1A,1C |
Contact Rating:16A/250VAC,30VDC |
|
|
|
|
|
|
Features: |
· Small light in weight.
· Low coil consumption.
· PC board mounting.
· Suitable for household electrical appliance, automation system, electronic equipment, instrument, meter, telecommunication facilities and remote control facilities. |
|
|
Ordering information |
CRST76--C-S-DC12V
1 2 3 4 |
1, Part number: CRST76 2, Contact arrangement:A:1A;C:1C
3, Enclosure: S:Sealed type;Z:Dust cover
4,Coil rated voltage(V):DC:3,5,9,12,24,48 |
Contact data |
Contact Arrangement |
1A(1H)(SPST NO);1C(1Z)(SPDT) |
Contact Material |
AgCdO, AgSnO2In2O3 |
Conatct Rating(Resistive) |
16A/250VAC/30VDC |
Max.Switching Power |
300W 2500VA |
Max.Switching Voltage |
110VDC 380VAC Max.Switching Current:16A |
Contact Resistance or Voltage Drop |
≤50mΩ |
Operation Life |
Electrical |
105 |
Mechanical |
107 |
Coil Parameter |
Coil voltage
(VDC) |
Coil Resistance
Ω±10% |
Pick up Voltage VDC(Max)
(75% of rated voltage) |
Release voltage VDC(Min)
(5% of rated voltage) |
Coil power consumption
(W) |
Operate Time
(mS) |
Release Time
(mS) |
Rated |
Max |
5 |
6.5 |
125 |
3.75 |
0.25 |
0.2 |
≤10 |
≤5 |
6 |
7.8 |
180 |
4.50 |
0.30 |
9 |
11.7 |
405 |
6.75 |
0.45 |
12 |
25.6 |
720 |
9.00 |
0.60 |
24 |
31.2 |
2880 |
18.0 |
1.20 |
5 |
6.5 |
56 |
3.75 |
0.25 |
0.45 |
6 |
7.8 |
80 |
4.50 |
0.30 |
9 |
11.7 |
180 |
6.75 |
0.45 |
12 |
25.6 |
320 |
9.00 |
0.60 |
24 |
31.2 |
1280 |
18.0 |
1.20 |
48 |
52.8 |
5120 |
38.4 |
2.40 |
Operation condition |
Insulation Resistance |
100MΩ min(at 500VDC) |
Dielectric Strength
Between Contacts
Between Contacts and Coil |
50Hz750VAC
50Hz 1500VAC
|
Shock Resistance |
100M/S2 11ms |
Vibration Resistance |
10~55Hz Double amplitude 1.5mm |
Terminals Strength |
10N |
Solderability |
235±2℃ 3±0.5s℃ |
Ambient Temperature |
-40~85℃ |
Relative Humidity |
85%(at 20℃) |
Mass |
10g |

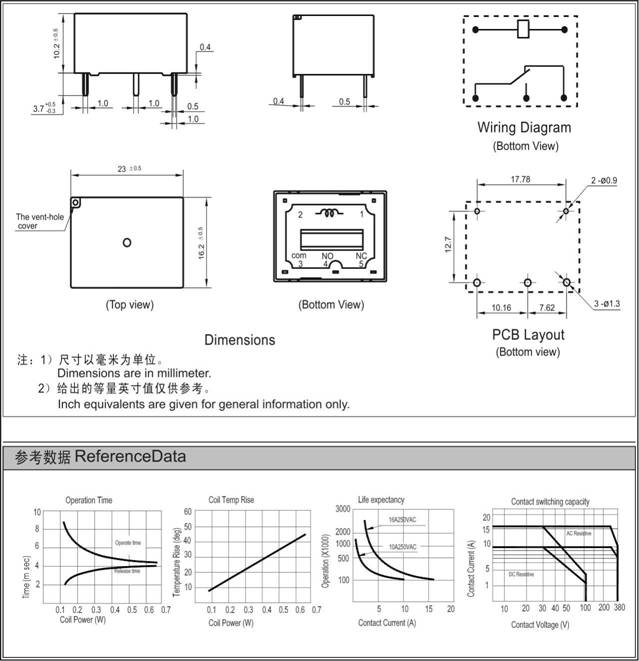

Dimensions(mm/Inch) |
|
|
|
|
|
|
|
