36F
Type:CRST36F Generally relays
Dimensions:24.5X10.5X25mm
Contact Form:1A,1C
Contact Rating:10A/250VAC,30VDC

Features:
· Large load, applicable to large power switch.
· Small size, applicable to high-consistency installation.
· Applicable to remote control of TV set, copycat, vending machine and air-conditioner, etc

Ordering information

CRST36F--C-S-DC12V--L
    1      2 3   4   5

1, Part number: CRST36F     2, Contact arrangement  A:1A;C:1C
3, Enclosure: S:Sealed type; Z:Dust cover
4, Coil Rated voltage(V):DC:5,6,9,12,24,48
5,Coil power consumption:Nil 0.53W; L:0.25W

Contact data

Contact Arrangement

1A(SPST NO)   1C(1Z)(SPDT)

Contact Material

AgSnO2    AgCdO

Conatct Rating(Resistive)

10A/250VAC;30VDC

Max.Switching Power

330W    2500VA

Max.Switching Voltage

30VDC  277VAC  Max.Switching Current:10A

Contact Resistance or Voltage Drop

≤100mΩ

Operation Life

Electrical

105

Mechanical

107

Coil Parameter

Coil voltage
(VDC)

Coil Resistance
Ω±10%

Pick up Voltage VDC(Max)
(75% of rated voltage)

Release voltage VDC(Min)
(5% of rated voltage)

Coil power consumption
(W)

Operate Time
(mS)

Release Time
(mS)

Rated

Max

5

6.5

100

3.75

0.25

0.25

≤15

≤5

9

11.7

325

6.75

0.45

12

15.6

575

9.00

0.60

24

31.2

2310

18.0

1.20

5

6.5

47

3.75

0.25

0.53

9

11.7

155

6.75

0.45

12

15.6

270

9.00

0.60

24

31.2

1080

18.0

1.20

Operation condition

Insulation Resistance

1000MΩ min(at500V)

Dielectric Strength
Between Contacts
Between Contacts and Coil

50Hz 1000V
50Hz  4000V

Shock Resistance

100m/s2   11ms

Vibration Resistance

10~55Hz   Double amplitude 1.5mm

Terminals Strength

10N

Solderability

235±2≧   3±0.5s≧

Ambient Temperature

-40~70≧

Relative Humidity

35%~85%(at 35≧)

Mass

12g

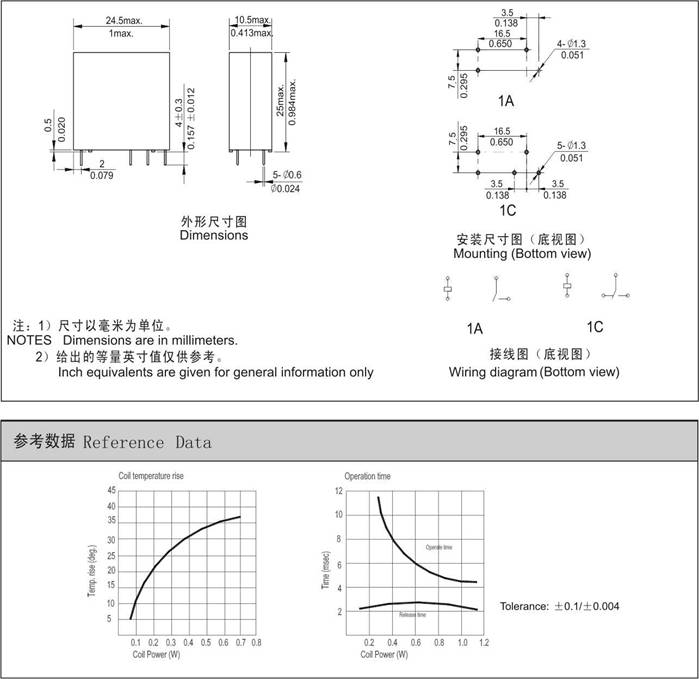

Dimensions(mm/Inch)




Jargon:
SPNO(1A)=Single Pole Normally Open
SPNC(1B)=Single Pole Normally Closed
SPST(1C/O)=Single Pole Single Throw
DPDT=Double Pole Double Throw=2C/O
TPDT=Three Pole Double Throw=3C/O
