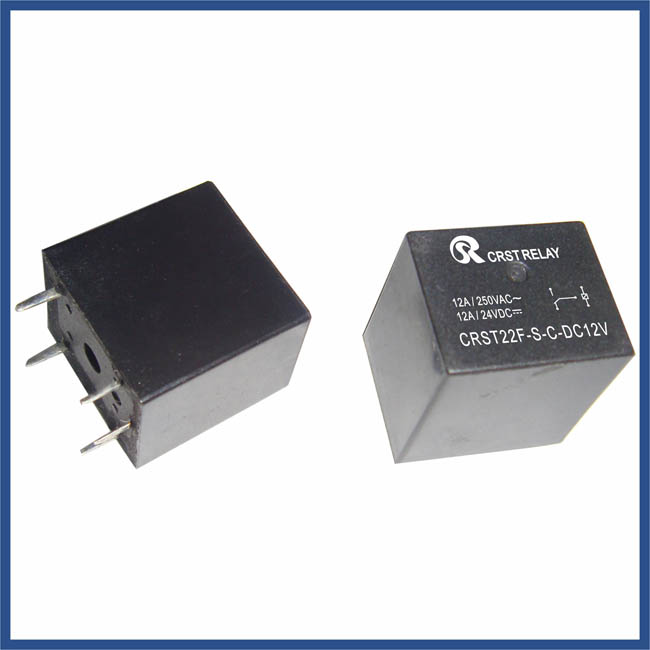

22F
型号:CRST22F
尺寸:20.3X16.8X20.2mm
触点形式:1A,1B,1C
额定负载:15A/125VAC,10A/28VDC


特点 Features

1,体积小,重量轻,线圈功耗低 Small size,light weight,Low coil power consumption.
 2,切换容量达15A Switching capacity can reach 15A.   3,可直接焊接在印刷线路板中.PC board mounting.
4,用于家用电器,自动化系统,电子设备,仪器,仪表,遥控TV接收器,监控仪音响设备等高浪涌电流的场合.Suitable for hosehlod electrical appliances,automation system,electronic equipment,instrument and meter application,Remote control TV receiveds,monitor display,audio equipment high and rushing current application.

订货信息 Ordering information

CRST 22F-C-S-10-DC12V
    1   2 3  4  5

1,型号 Part number: CRST22F             2,触点形式 Contact arrangement:A:1A;B:1B;C:1C
3,封装形式:S:试水式;无:防尘式   Enclosure: S:Sealed type;Z:Dust cover
4,触点电流 Contact Current: 7:7A;10:10A;12:12A;15:15A
5,线圈额定电压Coil rated voltage(V):DC:3,5,9,12,24,48

触点数据 Contact data

触点形式 Contact Arrangement

1A(1H)(SPST NO);1B(SPST NC);1C(1Z)(SPDT)

触点材料 Contact Material

AgCdO, AgSnO2

触点负载(阻性) Conatct Rating(Resistive)

15A/125VAC;10A/28VDC;
10A/250VAC;10A/24VDC;
6A/250VAC TV-5

最大切换功率Max.Switching Power

420W   4450VA

最大切换电压 Max.Switching Voltage

110VDC  380VAC最大切换电流Max.Switching Current:20A

触点阴性或压降 Contact Resistance or Voltage Drop

≤100mΩ

寿命 Operation Life

电气 Electrical

105

机械 Mechanical

107

线圈参数 Coil Parameter

线圈电压
Coil voltage
(VDC)

线圈电阻
Coil Resistance
Ω±10%

吸合电压VDC(最大)
Pick up Voltage VDC(Max)
(额定电压的75%)
(75% of rated voltage)

释放电压VDC
Release voltage VDC(Min)
(额定电压的5%)
(5% of rated voltage)

线圈功耗
Coil power consumption
(W)

动作时间
Operate Time
(mS)

释放时间
Release Time
(mS)

额定
Rated

最大
Max

3

3.9

25

2.25

0.3

0.36

≤15

≤5

6

7.8

100

4.50

0.6

9

11.7

225

6.75

0.9

12

15.6

400

9.00

1.2

24

31.2

1600

18.0

2.4

48

62.4

6400

36.0

4.8

12

15.6

320

9.00

1.2

0.45

24

31.2

1280

18.0

2.4

技术特性 Operation condition

绝缘电阻 Insulation Resistance

最少 100MΩ min(at 500VDC)

介质耐压 Dielectric Strength
断开触点间 Between Contacts
触点与线圈间 Between Contacts and Coil

50Hz1000VAC
50Hz 1500VAC

耐冲击 Shock Resistance

100m/s2   11ms

抗振性 Vibration Resistance

10~55Hz 双振幅 Double amplitude 1.5mm

引出端强度 Terminals Strength

10N

可焊性 Solderability

235±2℃   3±0.5s℃

环境温度 Ambient Temperature

-40~85℃

相当湿度 Relative Humidity

85%(at 40℃)

质(重)量 Mass

13g

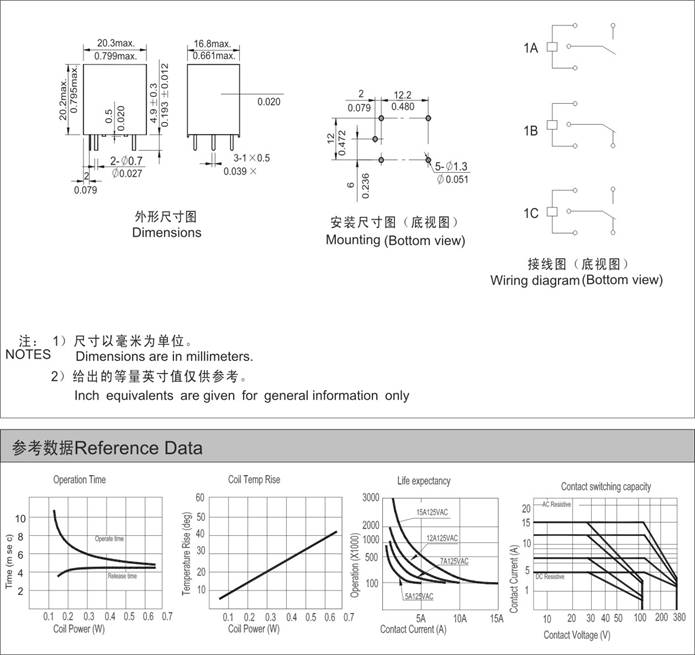

外形尺寸 Dimensions(mm/Inch)
