14F

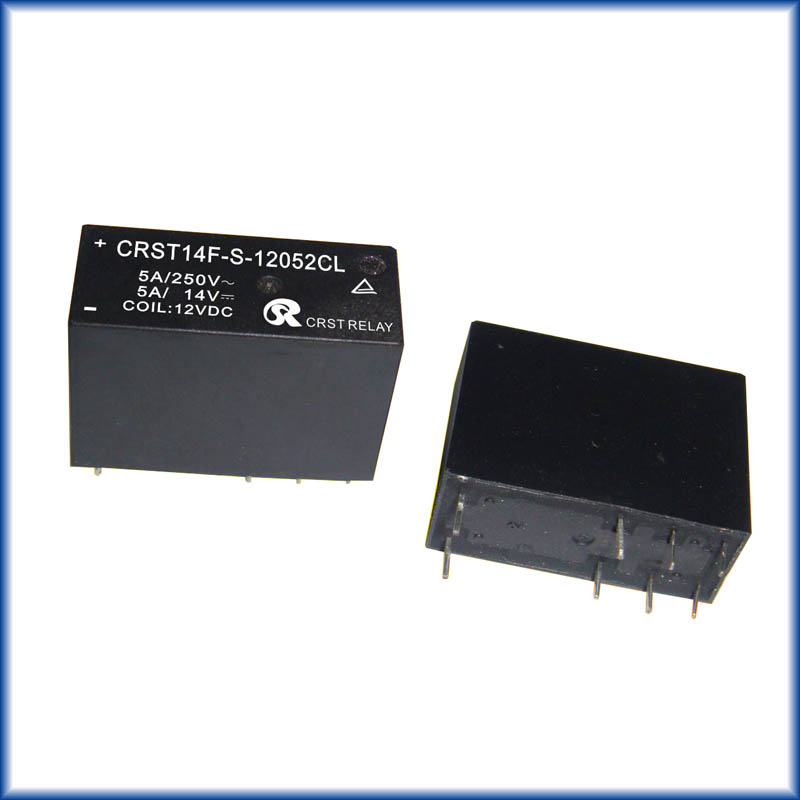

Type:CRST14F-LR Latching relays
Dimensions:29X12.6X20.6mm
Contact Form:1A,1C,2A,2C
Contact Rating:16A/250VAC;30VDC,10A/250VAC;5A/250VAC


特点 Features

1,体积小,可供高密度PC板式安装 Slim type and small occupying area can offer high density PCB technique.
2,使用的塑料材料耐高温和各种化学溶液.Employment of suitable plastic materials to be applied to high temperature and various chemical solution.
3,切换电流能力可达10~20A.Relay cover switching capacity from 10A to 20A.
4,两组转换时切换能力达5A.Switching capacity by 5A available with 2 transfer contact forms.

订货信息 Ordering information

CRST 14F-LR-1C-S--12 10---L
    1   2  3 4  5  6  7

1,型号 Part number: CRST14F
2,LR磁保持继电器Latching Relay
3,触点形式 Contact arrangement:1A:1A;2A:2A;1C:1C;2C:2C
4,封装形式:S:试水式;无:防尘式   Enclosure: S:Sealed type;Nil:Dust cover
5,线圈额定电压Coil rated voltage(V):DC:3,5,9,12,24,48
6,触点电流 Contact Current: 05:5A;08:8A;10:10A;16:16A
7,线圈功耗 Coil power consumption:L:0.54W;Nil:0.72W

触点数据 Contact data

触点形式 Contact Arrangement

1A(1H)(SPST NO);2A(DPST NO);1C(1Z)(SPDT);2C(2Z)(DPDT)

触点材料 Contact Material

AgCdO, AgSnO2

触点负载(阻性) Conatct Rating(Resistive)

Contact Arrangement

1A,1C

1A,1C

2A,2C

阻性 Resistive

16A/250VAC;30VDC
1A:20A/120VAC

10A/250VAC;30VDC

5A/250VAC;30VDC

感性 Inductive

8A/250VA;30VDC

5A/250VAC;30VDC

2A/250VAC,3A/30VDC

最大切换功率Max.Switching Power

420W   4450VA

最大切换电压 Max.Switching Voltage

110VDC  380VAC最大切换电流Max.Switching Current:20A

触点阻性或压降 Contact Resistance or Voltage Drop

≤100mΩ

寿命 Operation Life

电气 Electrical

105

机械 Mechanical

107

线圈参数 Coil Parameter

线圈电压
Coil voltage(VDC)
额定Rated

置位/复位电压
Reset voltage(VDC)

脉冲宽度
impulse width
(ms)

双线圈电阻
Ω±10%
Double coil resistance

单线圈电阻
Ω±10%
Single coil resistance

线圈功耗
Coil power consumption
(W)

5

≤3.80

≥50

36

47

0.54/0.72
(Single coil/Double coil)

6

≤4.50

≥50

50

68

9

≤6.80

≥50

115

155

12

≤9.00

≥50

200

270

24

≤18.0

≥50

3300

4400

技术特性 Operation condition

绝缘电阻 Insulation Resistance

最少 100MΩ min(at 500VDC)

介质耐压 Dielectric Strength
断开触点间 Between Contacts
触点与线圈间 Between Contacts and Coil



50Hz1200VAC
50Hz 5000VAC

耐冲击 Shock Resistance

100m/s2   11ms

抗振性 Vibration Resistance

10~55Hz 双振幅 Double amplitude 1.5mm

引出端强度 Terminals Strength

10N

可焊性 Solderability

235±2℃   3±0.5s℃

环境温度 Ambient Temperature

0.54W:-30~70℃;0.72W:-30~55℃

相当湿度 Relative Humidity

85%(at 40℃)

质(重)量 Mass

13g

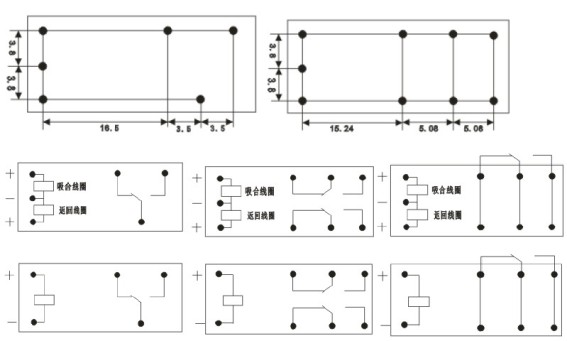

外形尺寸 Dimensions(mm/Inch)

CRST14F-Latching relay




OKA21,ZT94,MI/MIH,JQX-115F,JQX-14FF,ST1-1POLE,ST1H-1POLE,JQX-14F,JQX-14FH,JQX-14FD,BTV,HLS-14F1,JH141FD,TRA1/TRA2,HHC69C,(JQX-14FF-1Z),JQX-14FF JQX-14FL JZC-115,OMI/MOIH,JQX-14FF,JQX-115F(114F),CYF1/CYF3,GA-1,SMI(14F),TNC,SMI-1,SMIH-1,AZ697,RKS/RKA,V23077,OMI-1,VS,JW1,G2R-1,JQX-141FF,JQX-14FF,JQX-141FF,HF141FFH,HK14F/14FD14FH HRM/HCP1/HCP3,845/888,
OKA6,GZ/GZT,ST1-2POLE,ST1H-2POLE,HLS-14F2,HLS-14F3,TRA3,HHC69D,(JQX-14FF-2Z),CYF2,GA-2,SMIH-2P(14FD),TNA,SMI-2,SZ,AZ697,RKS/RKA,V23077,OMI-2,VB,JW2,G2R-2,HRM1/HCP2,845/881
DW1,MI-2P,SMIH(14FH)
Jargon:
SPNO(1A)=Single Pole Normally Open
SPNC(1B)=Single Pole Normally Closed
SPST(1C/O)=Single Pole Single Throw
DPDT=Double Pole Double Throw=2C/O
TPDT=Three Pole Double Throw=3C/O
