Big picture of the relay
Type:CRST4141H Automotive Relays
Dimensions:29X29X26(+16)mm
Contact Form:1A,1B,1C
Contact Rating:80A/14VDC

Features:
1,Small Size.
2,Contact load capacity up to 80A.
3,Suitable for automobile.
4, PC Board mounting and direct insert mounting available.

Ordering information

CRST4141H--C-S-DC12V-L--P--R
     1         2 3   4     5 6  7

1, Part number: CRST4141H             2, Contact arrangement:A:1A(80A);B:1B(70A);C:1C(70/80A)
3, Enclosure: S:Sealed type; Z:Dust cover
4,Coil rated voltage(V):DC:6,9,12,24,48     5, Coil power consumption:L:1.6W;Nil:1.8W
6,Terminals: P:PCB Type; Nil: Plug in type
7,Coil transient suppression: R:with Resistance; Nil: Standard

Contact data

Contact Arrangement

1A(1H)(SPST NO);1B(SPST NC);1C(1Z)(SPDT)

Contact Material

AgNi, AgSnO2, AgCdO

Conatct Rating(Resistive)

1A(80A/14VDC)  1B(70A/14VDC)   1C(NO:70A/80A/14VDC)

Max.Switching Power

980W

Max.Switching Voltage

75VDC  Max.Switching Current:80A

Contact Resistance or Voltage Drop

≤30mΩ

Operation Life

Electrical

105

Mechanical

107

Coil Parameter

Coil voltage
(VDC)

Coil Resistance
Ω±10%

Pick up Voltage VDC(Max)
(75% of rated voltage)

Release voltage VDC(Min)
(5% of rated voltage)

Coil power consumption
(W)

Operate Time
(mS)

Release Time
(mS)

Rated

Max

6

7.8

20

3.9

0.6

1.8

≤7

≤5

12

15.6

80

7.8

1.2

24

31.2

320

15.6

2.4

Operation condition

Insulation Resistance

100MΩ min(at 500VDC)

Dielectric Strength
Between Contacts
Between Contacts and Coil

50Hz 500V
50Hz 500V

Shock Resistance

147m/s2   11ms

Vibration Resistance

10~40Hz   Double amplitude 1.5mm

Terminals Strength

8N  4N(PCB)

Solderability

235±2℃   3±0.5s℃

Ambient Temperature

-40~125℃

Relative Humidity

85%(at 40℃)

Mass

46g/48g

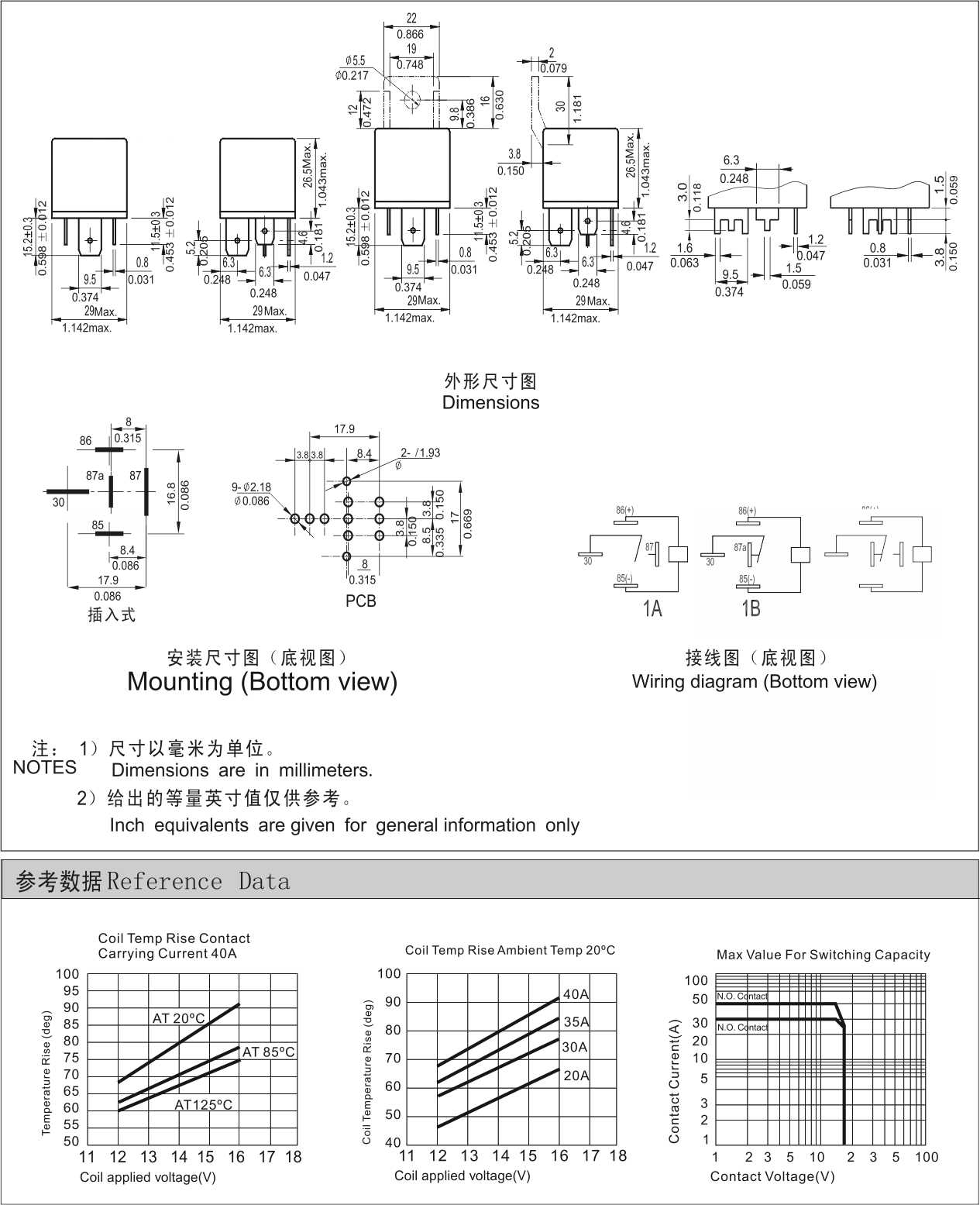

Dimensions(mm/Inch)
