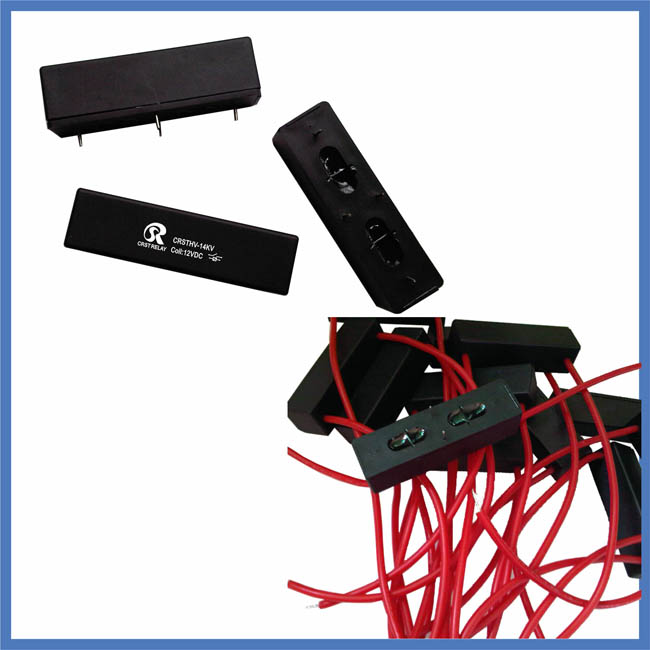

SIP REED RELAY
Type:CRSSHV(High voltage reed relay) Cont form:1 Form A or B(NO;NC)
Rating load:50W R on (ohm):150m
Contact Form:1A Load(V):DC.10KV
Load(I):2A T on:4mS
Cout typ:2.0pF Breakdown volt:DC.14KV


Features

Breakdown Voltage Is DC.14KV
PCB type,PCB+Wire type
coil voltage 12V/24V available;
Switching Voltage: 500V/1000V/2000V/5000V/7500V/10000V;
Breakdown Voltage: up to 15000Vdc
Switching Current: 2A-3A
Mounting: Wire or PCB mounts
Reliable Long-Life up to 10^8 operation times
Various models operate at temperatures ranging up to 75°C
Relays are usually SPST(NO,NC) type
The dimension can be customized.

Ordering information

CRSTHV-DC12V-A-W
    1    2    3 4

1, Part number: CRSTHV
2,Coil rated voltage(V):DC:12,24
3, Contact Form:Normal Open,Normal Close
4,Teminal Type:NIL:PCB type,W:PCB+Wire

Contact Rating

Contact Arrangement

1A,1B(SPST NO,NC);

Contact Rating

50W

Max.Switching Voltage

DC.14KV

Max.Switching Current

2.0A

Max.Carry Current

3.0A

寿命 Operation Life

电气 Electrical

DC.10000V-1mA  0.5X106 MIN Operations(R.L.)

机械 Mechanical

1*10^8 MIN Operations(R.L.)

Coil Parameter

Coil voltage
(VDC)

Coil Resistance
Ω±10%

Normal Current(mA)

Release voltage VDC(Min)
(10% of rated voltage)

Pick up Voltage VDC(Max)
(70% of Rated voltage)

Rated

Max

12

15.6

200

60.0

1.2

8.4

24

31.2

720

33.3

2.4

16.8

Operation condition

Contact Resistance

150mΩ MAX.(Initial)

Breakdown Voltage

Open Contacts DC.14KV MIN
Contacts to COIL DC.15KV MIN

Insulation Resistance

Open contacts 1X109ΩMIN.(DC.100V)
Contacts to coil 1X109ΩMIN.(DC.100V)

Electromotive Capacitance

2.0pF MAX.

Operate Time

(Incl.bounce)4.0mS MAX.(at Normal Voltage)

Release Time

2.0mS MAX.(at Normal Voltage)

Vibration

20G(0~55Hz.1.5mm)

Shock

30G(11mS,1/2Sin Wave)

Operating Temperature

-20℃-+70℃

Storage Temperature

-35℃-+90℃

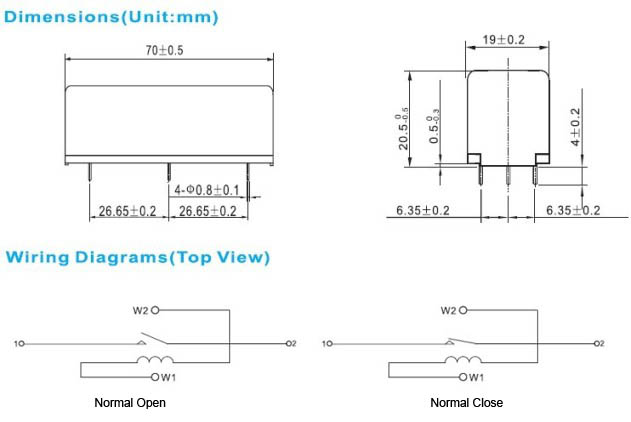

外形尺寸 Dimensions(mm/Inch)

High Voltage Reed Relay Application:
• Communication equipment;
• Control equipment;
• Measuring equipment;
• Medicine equipment;
• X-Ray Therapeutic Apparatus;
• X-Ray Inspection Equipment;
• High Voltage Transformer;
• Insulation and Low Resistance Tester;
• Dielectric Strength Tester;

Industrial
Photovoltaic Systems
Medical
Electrosurgical Generators
Portable Defibrillators
Surgical Instruments
Telecommunications
Portable Radios
RF Receivers
Test & Measurement
Auto Test Equipment
Battery Powered
Cable Testers
Chip Testers
Data Acquisition/Scanning
Electrometers
Functional PCB Testing
High Voltage
Industrial
Integrated Circuits
Modular Instrumentation
Multimeters
Network Analyzers
Oscilloscopes
RF Attenuators
