SIP REED RELAY
型号:CRSR505(SIP)
尺寸:20.5X8.0X9.0mm
触点形式:1A
额定负载:0.1A/125VDC;0.5/24VDC


特点 Features

1,体积小,重量轻,线圈功耗低.  Small size,light weight,Low coil power consumption.
2,搞冲击及抗震性强,可靠性高,寿命长.  Strong anti-shock and anti-vibration,high reliablility,long life.
3,可直接焊接在印刷线路板中.PC board mounting.
4,高灵敏度.  High sensivity.

订货信息 Ordering information

CRSR-A-5-05
   1 2  3 4

1,型号 Part number: CRSR
2,触点形式 Contact arrangement:A:1A;2A:2A
3,线圈额定电阻Coil Resistance(Ω):1:63;2:250;5:500;7:700;10:1050;20:2080
4,线圈额定电压Coil rated voltage(V):DC:3,5,8,12,24

触点数据 Contact data

触点形式 Contact Arrangement

1A(1H)(SPST NO); 2A(2H)(SPST NO)

触点材料 Contact Material

Ru/Rh

触点负载(阻性) Conatct Rating(Resistive)

0.1A/125VAC;0.5A/24VDC

最大切换功率Max.Switching Power

10W(DC)/10VA(AC)

最大切换电压 Max.Switching Voltage

120VAC,60VDC  最大切换电流Max.Switching Current:1A

触点阴性或压降 Contact Resistance or Voltage Drop

≤150mΩ

寿命 Operation Life

电气 Electrical

107

机械 Mechanical

108

线圈参数 Coil Parameter

线圈电压
Coil voltage
(VDC)

线圈电阻
Coil Resistance
Ω±10%

吸合电压VDC(最大)
Pick up Voltage VDC(Max)
(额定电压的75%)
(75% of rated voltage)

释放电压VDC
Release voltage VDC(Min)
(额定电压的10%)
(10% of rated voltage)

线圈功耗
Coil power consumption
(W)

动作时间
Operate Time
(mS)

释放时间
Release Time
(mS)

额定
Rated

最大
Max

3

3.90

250

2.25

0.3

0.036

≤0.5

≤0.2

5

6.50

500

3.75

0.5

0.050

8

10.4

700

6.0

0.8

0.091

12

15.6

1050

9.0

1.2

0.137

24

31.2

2080

18.0

2.4

0.277

技术特性 Operation condition

绝缘电阻 Insulation Resistance

最少 100MΩ min(at 500VDC)

介质耐压 Dielectric Strength
断开触点间 Between Contacts
触点与线圈间 Between Contacts and Coil



50Hz200VAC
50Hz 3000VAC

耐冲击 Shock Resistance

Functional 动作极限

20G

Destruction 破坏极限

100G

抗振性 Vibration Resistance

10~55Hz 双振幅 Double amplitude 1.5mm

引出端强度 Terminals Strength

10N

可焊性 Solderability

235±2℃

工作温度 Ambient Temperature

-30~70℃

存储环境 Storage Temperature

-40~125℃

质(重)量 Mass

3g

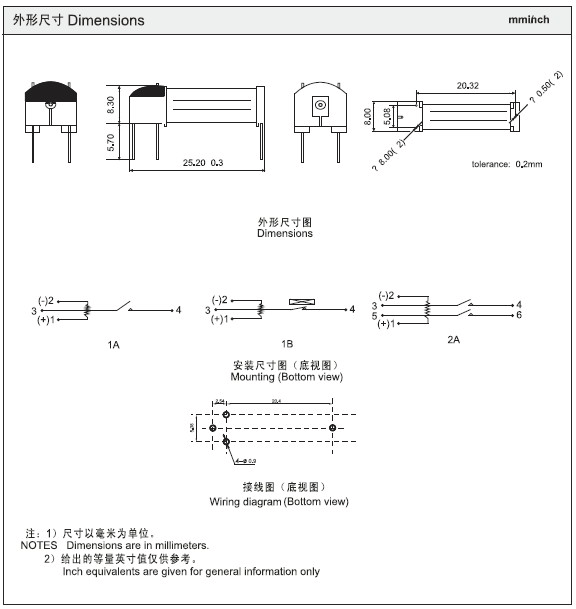

外形尺寸 Dimensions(mm/Inch)
