DIP REED RELAY
Type:CRSD1A05(DIP)
Dimensions:19.5X7.0X5.5mm
Contact Form:1A,2A,1C
Contact Rating:0.1A/125VDC;0.5/24VDC

Features:
· Small light in weight.
· Low coil consumption.
· PC board mounting.
· High sensivity,
· Strong anti-shock and anti-vibration,high reliability,long life.

Ordering information

CRSD-1A-05
   1   2  3

1, Part number: CRSD
2, Contact arrangement:A:1A/2A;C:1C
3,Coil rated voltage(V):DC:5,12,24

Contact data

Contact Arrangement

1A(1H)(SPST NO); 2A(2H)(SPST NO);1C(1Z)(SPDT)

Contact Material

Ru/Rh

Conatct Rating(Resistive)

0.1A/125VAC;0.5A/24VDC

Max.Switching Power

10W(DC)/10VA(AC)

Max.Switching Voltage

110VDC   Max.Switching Current:0.5A

Contact Resistance or Voltage Drop

≤150mΩ

Operation Life

Electrical

107

Mechanical

108

Coil Parameter

Coil voltage
(VDC)

Coil Resistance
Ω±10%

Pick up Voltage VDC(Max)
(75% of rated voltage)

Release voltage VDC(Min)
(5% of rated voltage)

Coil power consumption
(W)

Operate Time
(mS)

Release Time
(mS)

Rated

Max

3

3.90

250

2.25

0.3

0.036

≤0.5

≤0.2

5

6.50

500

3.75

0.5

0.050

12

15.6

1000

9.00

1.2

0.144

24

31.2

2000

18.0

2.4

0.288

Operation condition

Insulation Resistance

100MΩ min(at 500VDC)

Dielectric Strength
Between Contacts
Between Contacts and Coil

50Hz750VAC
50Hz 1500VAC

Shock Resistance

Functional

20G

Destruction

100G

Vibration Resistance

10~55Hz   Double amplitude 1.5mm

Terminals Strength

10N

Solderability

235±2℃   3±0.5s℃

Ambient Temperature

-40~85℃

Storage Temperature

-40~125℃

Mass

2g

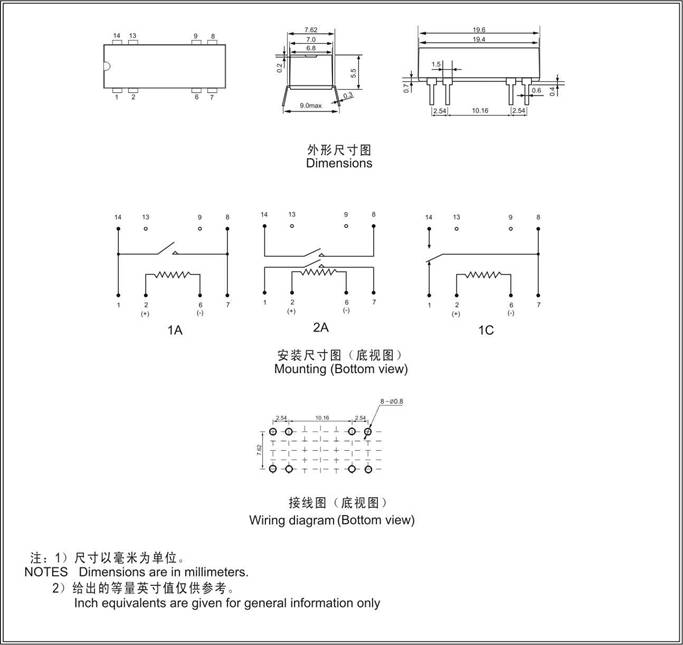

Dimensions(mm/Inch)
