communication relay 115F
Type:CRST115F Generally relays
Dimensions:29X12.7X15.7mm
Contact Form:1A,2A,1C,2C
Contact Rating:16A/250VAC;30VDC,12A/250VAC,8A/250VAC


Features

1, Low coil power consumption.
2, Low coil consumption.
3, Small size,Light weight .
4, PC board mounting.
5, Suitable for automation facilities,telecommunication equipment,household electrical appliance,wireless radio remote control,sound control toys application etc

Ordering information

CRST115F-S-12 08D 2A H
     1      2 3   4  5  6

1, Part number: CRST115F
2, Enclosure: S:Sealed type; Nil:Dust cover
3, Coil Rated voltage(V):DC:3,5,6,9,12,24,48
4, Coil rated voltage(V):8A,12A,16A
5, Contact arrangement:  1A:1A(SPST);2A:2A(DPST);1C:1C(SPDT);2C:2C(DPDT)
6,Coil power consumption:Nil 0.41W; H:0.72W

Contact data

Contact Arrangement

1A(1H)(SPST NO);2A(DPST NO);1C(1Z)(SPDT);2C(2Z)(DPDT)

Contact Material

AgCdO, AgSnO2

Conatct Rating(Resistive)

Contact Arrangement

1A,1C

1A,1C

2A,2C

Resistive

16A/250VAC;30VDC
1A:20A/120VAC

12A/250VAC;30VDC

8A/250VAC;30VDC

Inductive

8A/250VA;30VDC

6A/250VAC;5A/30VDC

4A/250VAC,3A/30VDC

Max.Switching Power

Resistive

480W  4000VA

300W  2500VA

150W  1250VA

Inductive

240W  2000VA

150W  1875VA

90W   500VA

Max.Switching Voltage

125VDC  440VAC Max.Switching Current:20A

Contact Resistance or Voltage Drop

≤100mΩ

Operation Life

Electrical

105

Mechanical

107

Coil Parameter

Coil voltage
(VDC)

Coil Resistance
Ω±10%

Pick up Voltage VDC(Max)
(70% of rated voltage)

Release voltage VDC(Min)
(10% of rated voltage)

Coil power consumption
(W)

Operate Time
(mS)

Release Time
(mS)

Rated

Max

5

6.5

61

3.5

0.5

0.41

≤10

≤5

12

15.6

351

8.4

1.2

24

21.2

1405

16.8

2.4

12

15.6

200

8.4

1.2

0.72

24

31.2

800

16.8

2.4

Operation condition

Insulation Resistance

1000MΩ min(at 500VDC)

Dielectric Strength
Between Contacts
Between Contacts and Coil

50Hz 500V
50Hz 500V

Shock Resistance

100m/s2   11ms

Vibration Resistance

10~55Hz  Double amplitude 1.5mm

Terminals Strength

10N

Solderability

235±2℃   3±0.5s℃

Ambient Temperature

-40~85℃

Relative Humidity

85%(at 40℃)

Mass

11g~12g

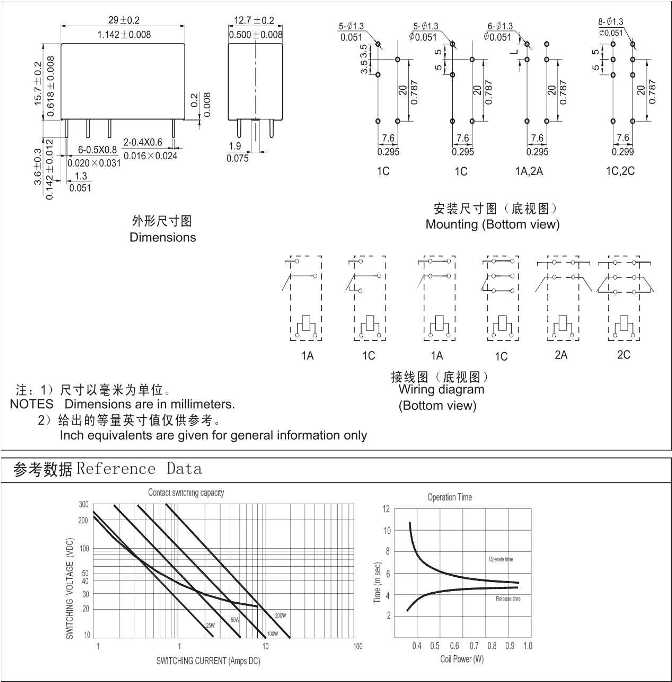

Dimensions(mm/Inch)
